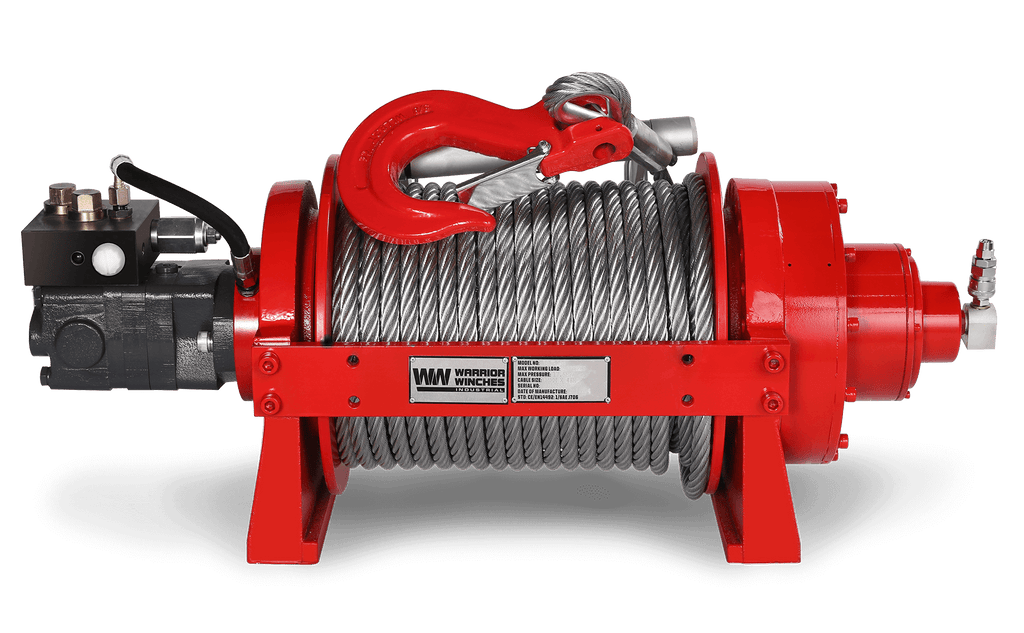

JR 10 Tonne Industrial Hydraulic Winch

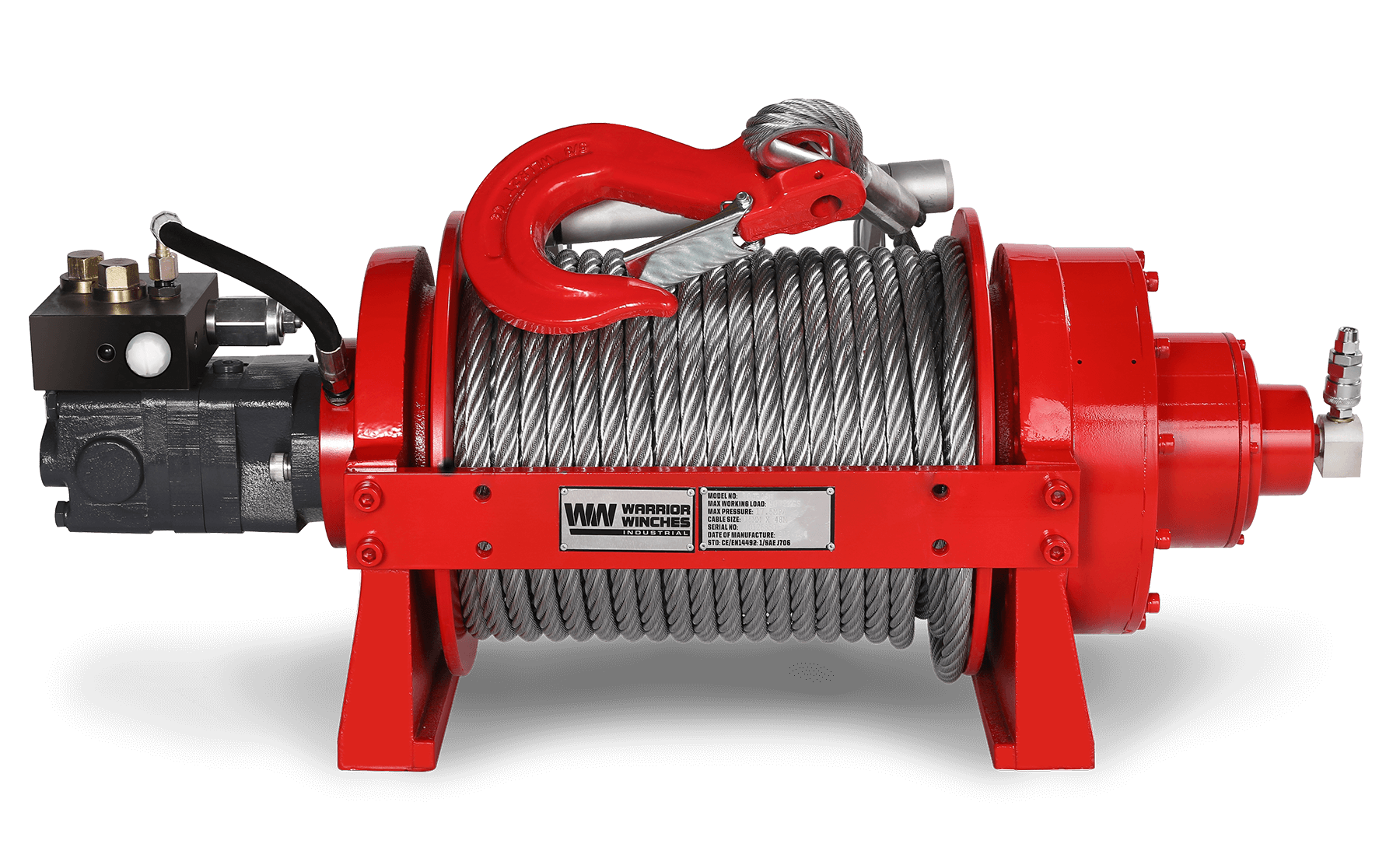

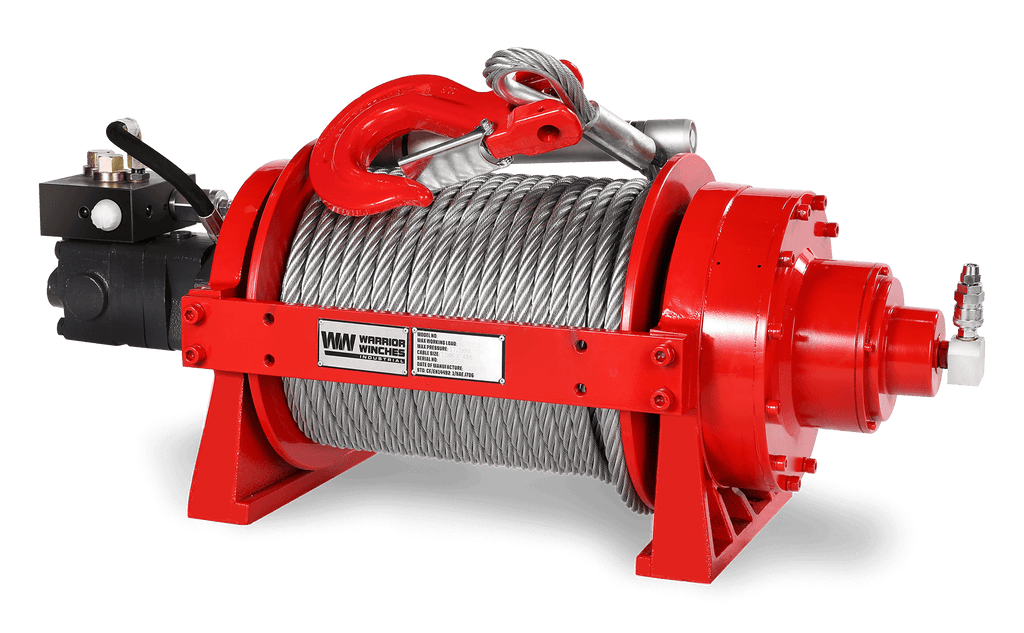

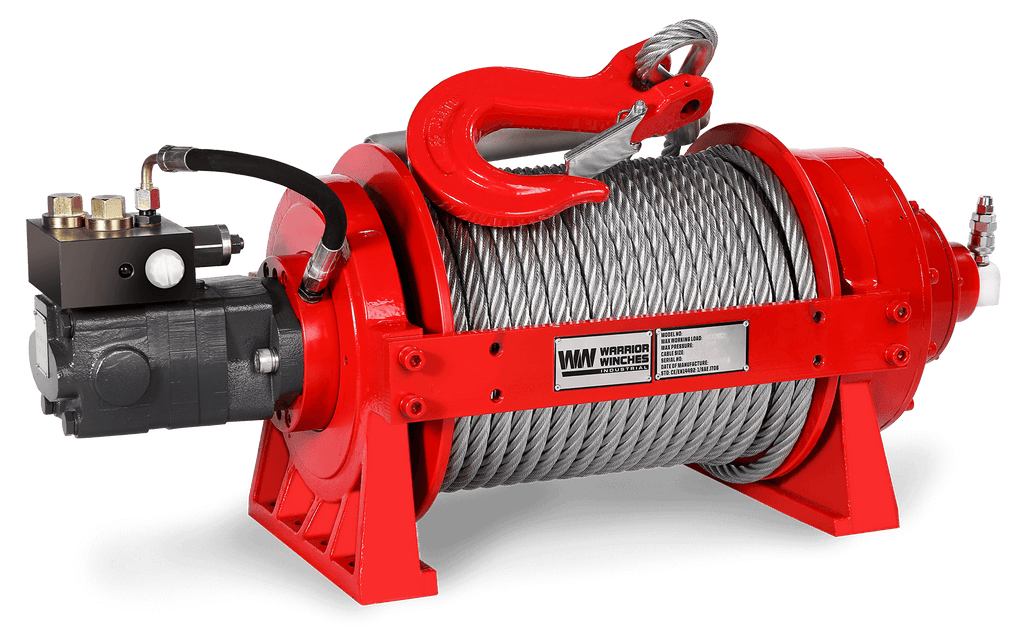

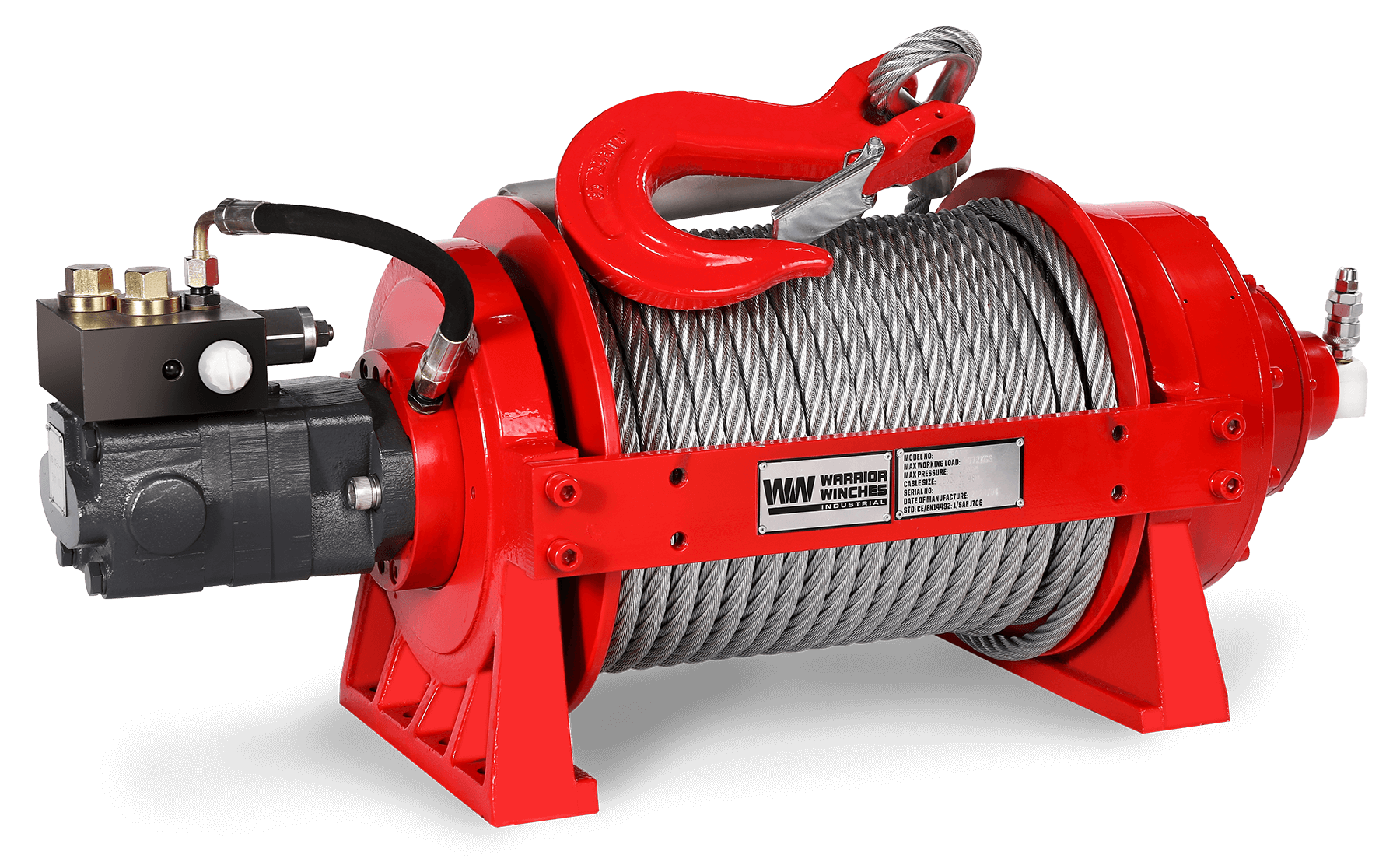

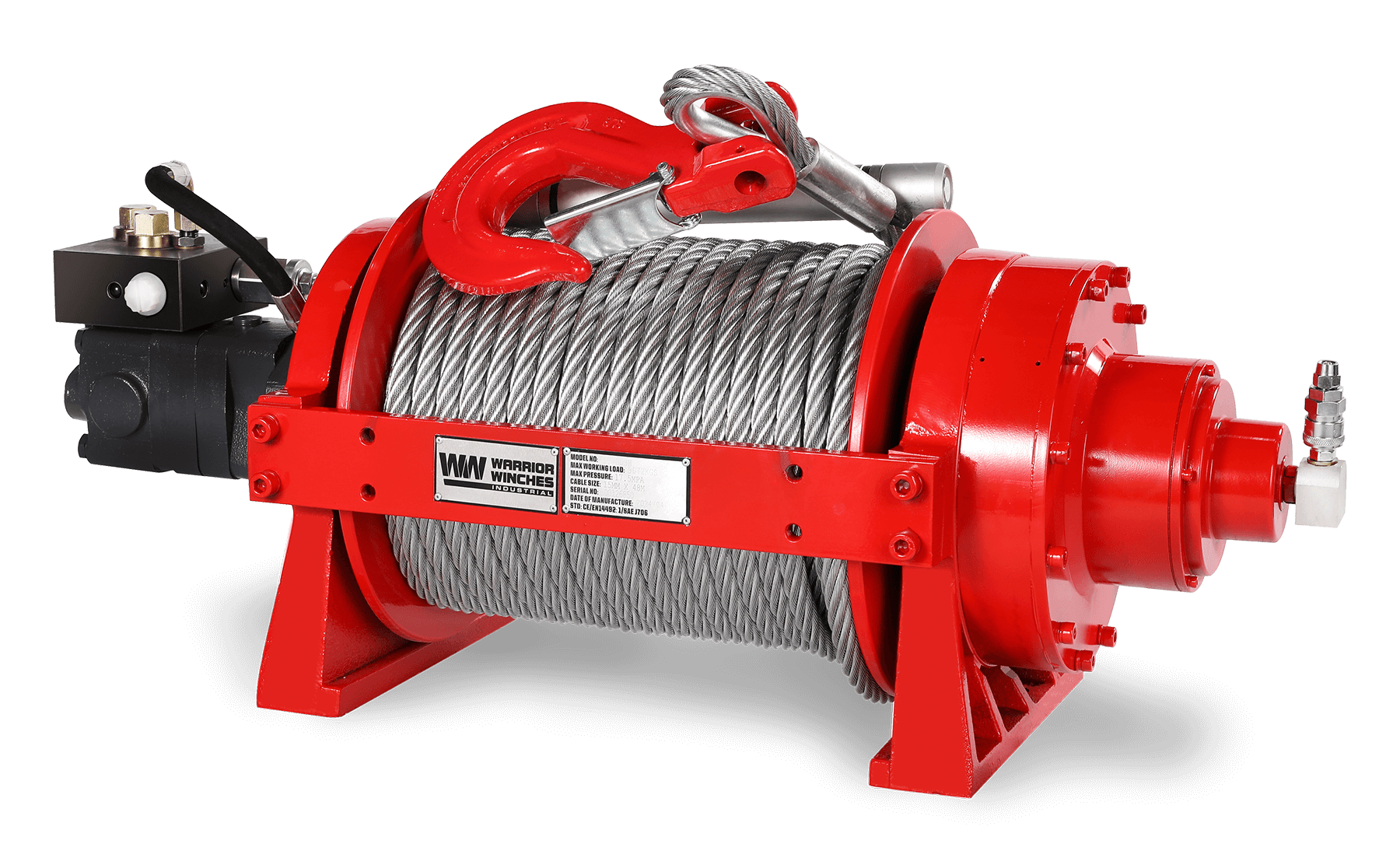

Warrior 10JR Industrial 10 Tonne Hydraulic Winch

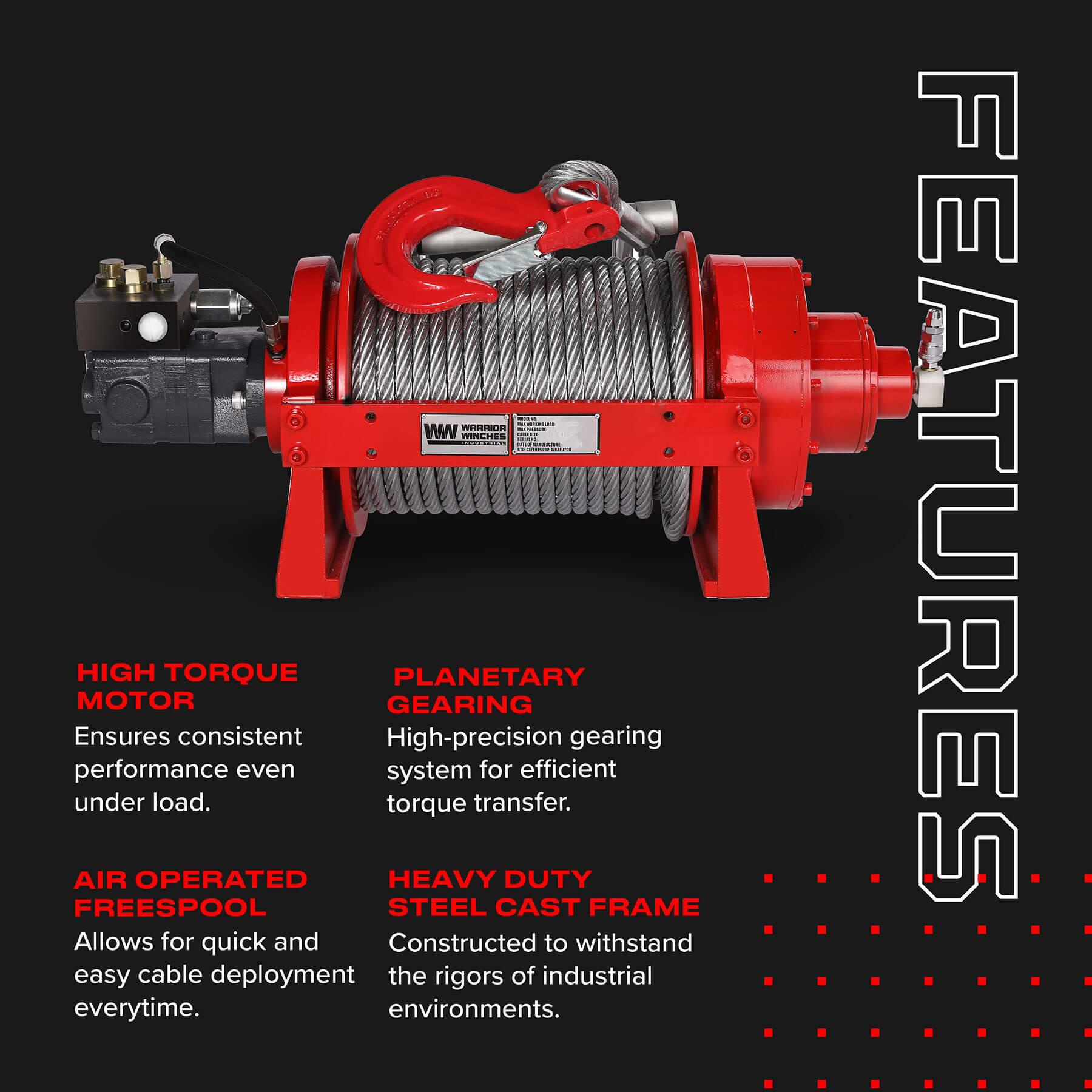

The complete Package. A superb heavy duty winch supplied complete with balance valve, cable and heavy duty tensioner. Standard features include air operated clutch, high precision 2 stage planetary gearing and a rugged high torque motor. The ultimate winch for heavy recovery and commercial applications.

Standard Features:

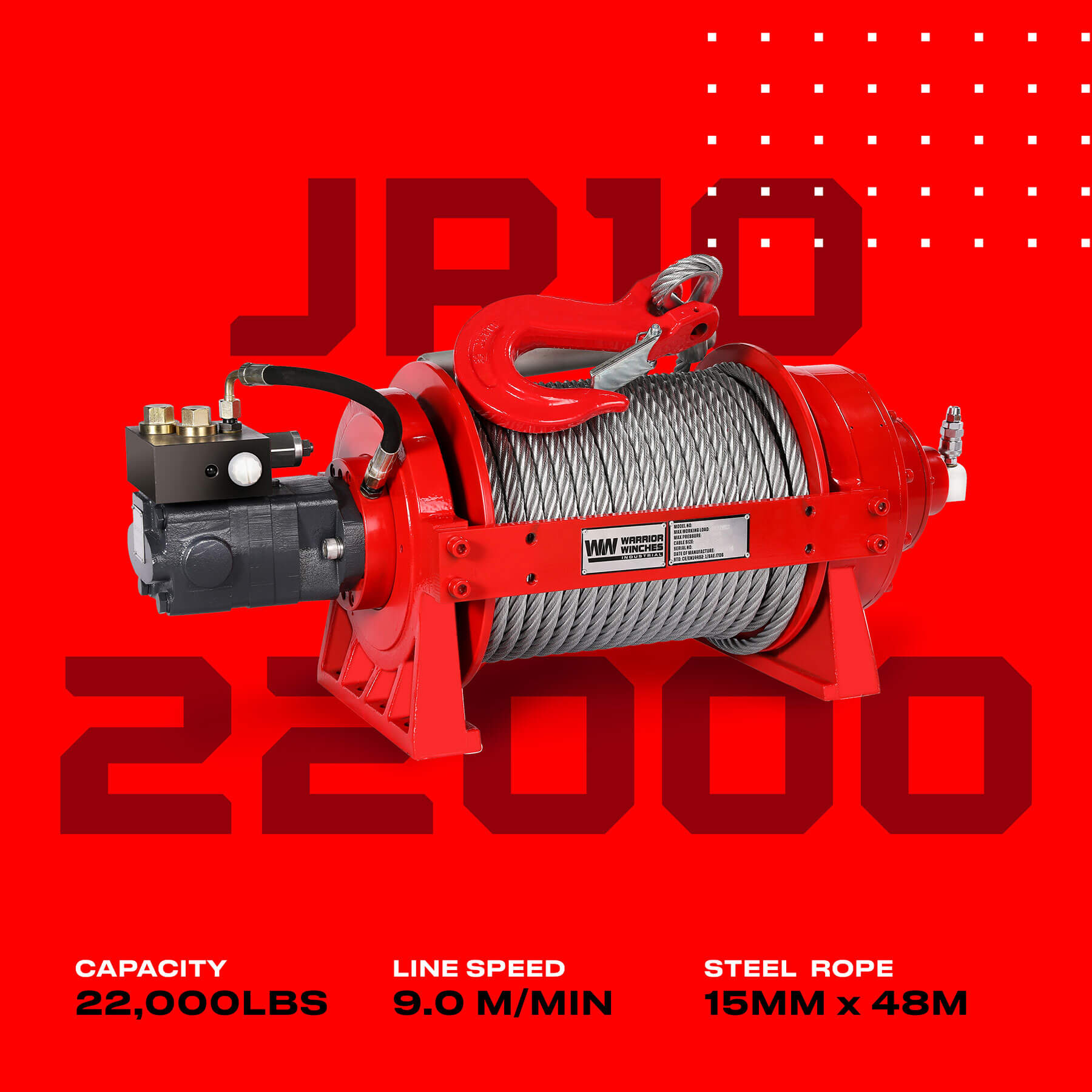

♦ Line Capacity: 22,000lb (10,000kg)
♦ Rope: Steel cable 15mm x 48m
♦ Motor: Hydraulic
♦ Gearbox: 39:01:00
♦ Warranty: Limited Five Year Mechanical

Accessories:

♦ Wired Hand Control: Available as an optional extra
♦ Wireless Control: Available as an optional extra
♦ Fairlead: Roller Fairlead optional extra (RF2000)
♦ Mounting Bolts: Included for Standard installations

Also Includes:

♦ Balance Valve
♦ Cable Tensioner
♦ Instruction Manual

Other Information:

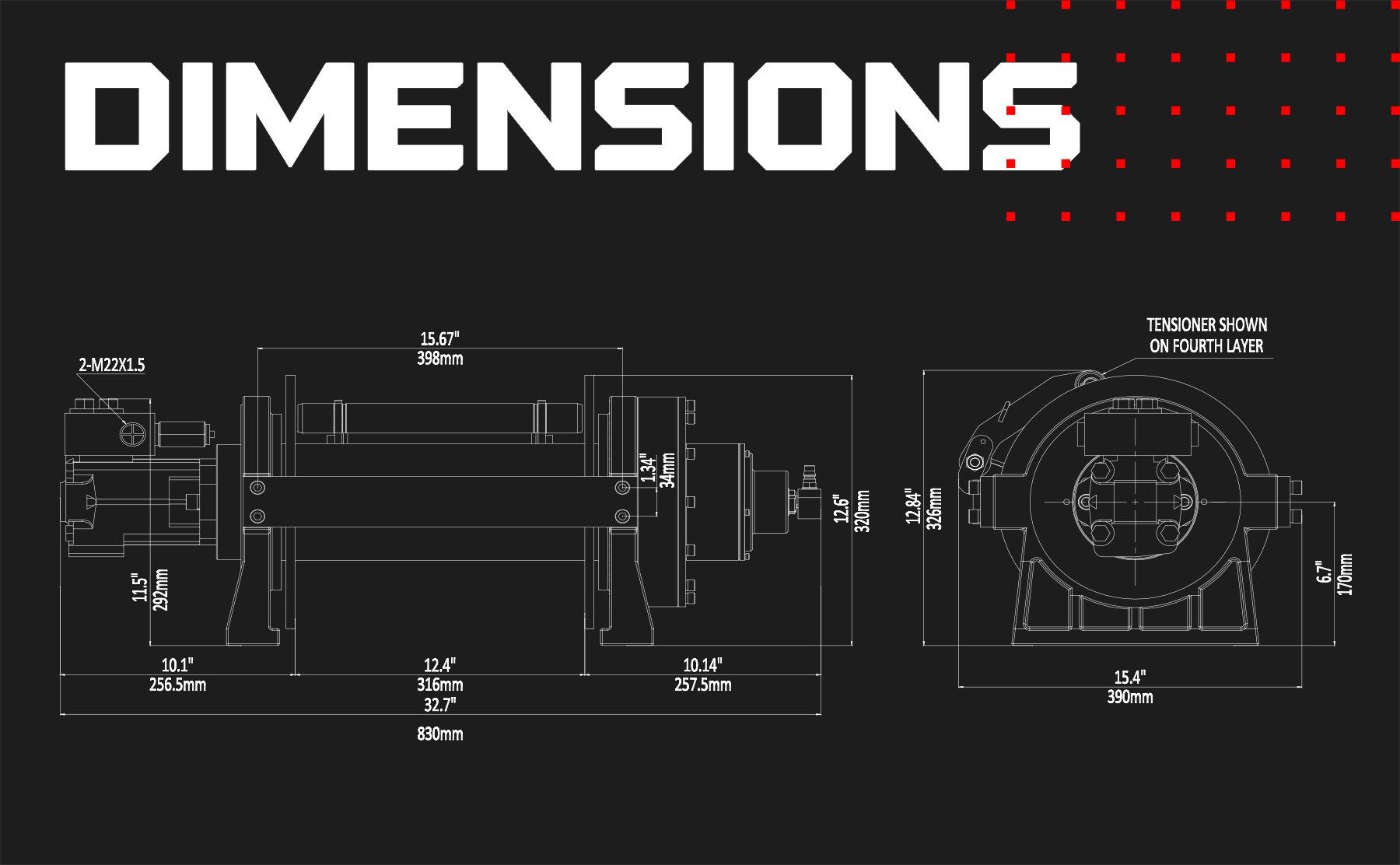

♦ Dimensions: 830mm L x 390mm D x 320mm H
♦ Mounting Bolt Pattern: 431mm x 192mm
♦ Approx. Shipping Weight: 165kg

Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.
