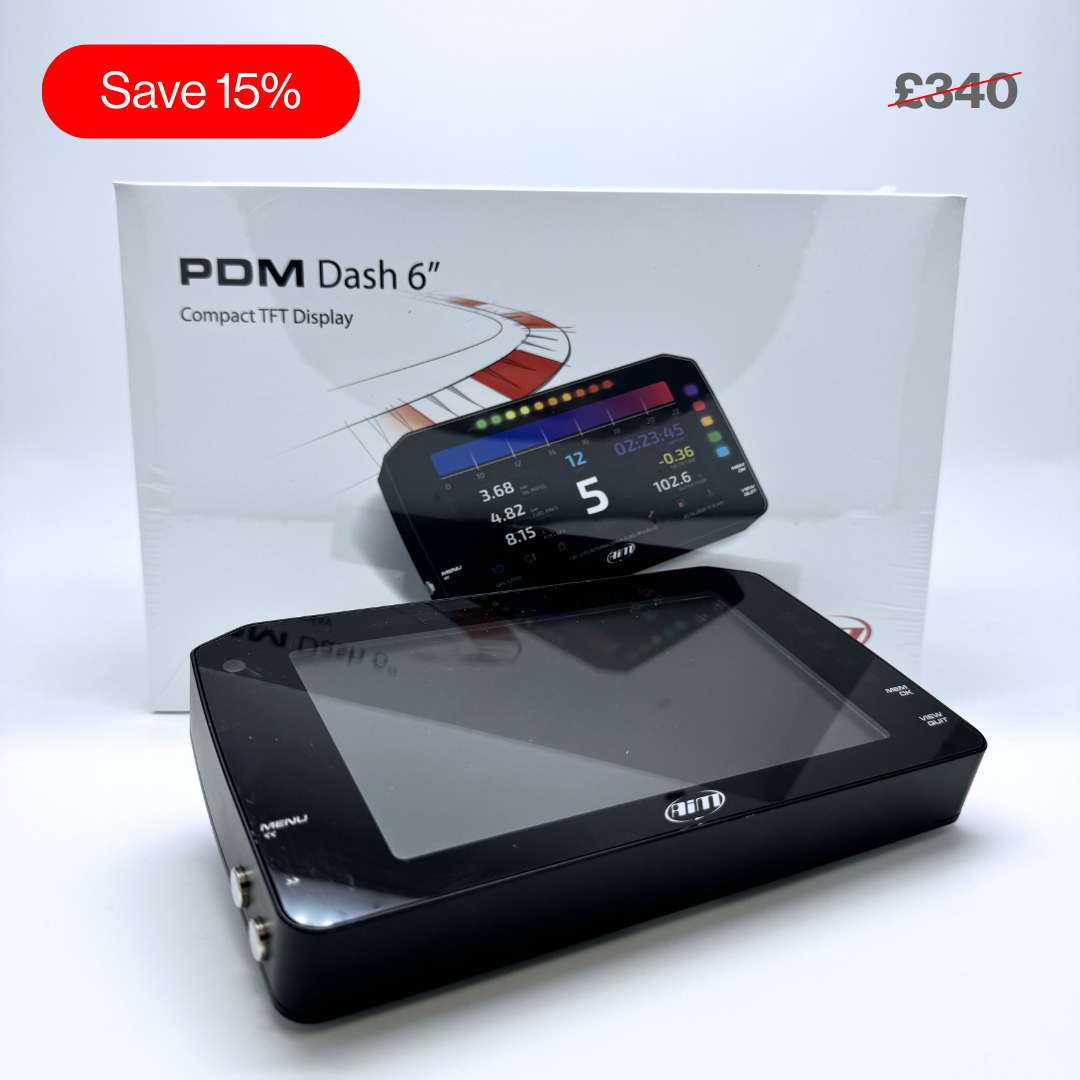

Second-Life Aim 6" TFT PDM Dash Display with Race Icons
Second-Life Aim 6" TFT PDM Dash Display with Race Icons
Advanced PDM Display
The 6" PDM Display with Race Icons is one of the most widely used PDM displays on tracks around the world. Its compact size makes it suitable for use as a replacement unit for those supplied with the Aim PDM kits or an upgrade for PDM kits that do not include a dash display.
Why Choose the 6” PDM Display
The 6" PDM Display is a TFT dash display suitable for replacing all of the dashboard gauges and warning lamps. The displays are available in 5”, 6" or 10" versions and with both "Road" or "Race" icon options. All versions have fully user-configurable displays and offer a range of layouts.
Check out the free downloads tab for all the information required on connection and programming to the PDM08 and the PDM32.
Please Note: The 6" Dash Display is ONLY for use with Aim PDM kits and can not be used as a stand-alone dash display.
Power Distribution Modules
Power Distribution Modules (PDMs) are designed to manage and distribute power throughout motorsport vehicles, providing precise control, reliability and flexibility for distributing electrical power throughout a vehicle for enhanced performance.
With configurable power outputs, ECU connection, an internal data logger, and current-monitoring for diagnostics/easier fault finding, the PDM Series remove the need for traditional fuse boxes and relays - reducing your wiring by up to 70%.
Display with Race Icons
The dash has a 6" TFT high contrast colour display. The visual quality is optimised by the ambient light sensor, which keeps the backlight at the best brightness levels.
Race icons allow you to apply conditions to the LED icons, such as fuel, engine, oil, lights and more.
Delta Times
The Delta Times feature provides instant feedback on your performance, showing how your current timing compares to your best.
Set a reference lap and visualise where you are gaining and losing time. The integrated lights will display green or red accordingly.
Integrated Shift Lights & Customisable Alarms
The 10 multi-coloured RGB shift lights can be customised to your liking, defining the RPM threshold on analogue or digital inputs, ECU values, expansion values, math channels or optional GPS option. You can choose the conditions and colours, select a solid arm or a flashing one and the flashing frequency. You can also configure an accompanying text message and set the alarm priorities.
Pre-Configured Pages
The Aim PDM 6" Display can show the RPM scale and all the data you need, like speed, water temperature and oil pressure, lap times and much more. You can customise pages to suit your requirements, including up to four additional fields. Define what data is shown with the end of scale and measure units. Swapping between the pages is easy; just use the push buttons.
Integrate a Reverse Camera
Using a bullet camera, your dash can display what's behind you on screen, just like a reverse camera - ideal for cars with limited rear vision.
You can add up to 2 cameras for both front and rear views.
Free Analysis Software
By connecting an Aim PDM08/32 to your Aim PDM Display - giving it the power to log your data - you can download your data and, with Race Studio 3; create, modify, delete, import and export configurations of:
- All channels
- ECU drivers
- Math channels
- Display pages
- Digital outputs
- Alarms
- Shift lights
- Expansions
Expand Your System
Add extra devices to your system to give additional data to improve your racing performance, such as a GPS Module, SmartyCams, Lambda Controller, Formula Steering Wheel, TPMS System and Keypads.
The 6" Race Display also doubles up as a reversing mirror using a separately available camera—ideal for cars with limited rear vision. You can add up to 2 cameras for both front and rear views. The camera is sold separately.
Please Note: You will require a PDM32 for this to work.
